Tuesday, August 25, 2009

Enough is Enough! No More Broken Windows

No... I'm not Microsoft-bashing (today)... not really. After all, this issue is seen on other operating systems as well. I recorded information about this in the things that perplexes many new and experienced analysts.

You may be aware th
at Wireshark has an Expert Info Composite entry for "Window is Full" and "Frozen Window" but unfortunately, this condition can be occurring on your network without Wireshark catching it.

You can set up a
butt-ugly color filter and a display filter to alert you to this condition. Let me explain...

In the picture above, I've added column for the receive window size value set in the TCP
headers of each packet. It's a custom column using the syntax tcp.window_size. I also added a column for the tcp.len value so I can see how much data is contained in each packet.

Notice in packet 361 that is advertising a window size of 2,920 bytes - enough for two 1460-byte segments to fill as Wireshark notes in packet 363 [TCP Window Full]. The full receive buffer leads the client to begin advertising a receive window size of
0. Ok... duh... We can spot that one easily!

Now look at this screenshot. This delay is caused by a window sized problem as well - but this time the window size field didn't go alt the way down to zero - its at 536 (packet 374). That's too small for the queued up TCP segment at the other side so you might as well have said "shut up" with a window zero setting.

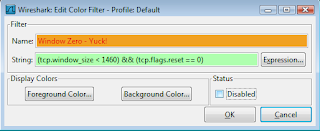

So what can we do about this? How can we easily see that we are having this problem when Wireshark doesn't have an Expert Notification for this? Aha! Here's where your butt-uglies come into play. Make a butt ugly filter for:

(tcp.window_size < reset ="="">

Check out the Trace File Analysis: TCP In-Depth course for more information on working with TCP traffic!

Enjoy life one bit at a time!

Monday, August 17, 2009

Sexy Spread Spectrum Signals

In the WLAN Analysis 101 course last month, I showed the effects of a cheap 2.4GHz phone on the wireless network by knocking myself off the network during my live video feed. Duh... I hope it made a point.

If I hadn't been picking up the RF signals around me, the death of my network connection would have been a mystery. After all, the cutoff was so sudden and folks in other locations around weren't having any problems at all.

The live course viewers saw the
sudden spike in the signal as I'd told them to watch the Chanalyzer Spectral View. begin to climb near channel 1 and then SCREECH! The video came to a halt and my voice (fed through VoIP on my end) became scratchy and my words almost impossible to decipher.

The figure above shows their view at the time I attacked myself! Wow! What a hot, my connection to the online seminar engine, it felt like real life - this is what really happens in the WLAN world - and we got to experience it together.

I love looking at the Chanalyzer Spectral View - it consists of time across the X axis and frequency/channel across the Y axis. The color coding is based on signal amplitude. The closer to red, the stronger the signal. Vertical stripping indicates a consistent signal on a specific frequency. Manipulating the time controller at the bottom of the Chanalyzer window enables me to focus in on a specific area of time for a clearer picture.

The Chanalyzer/Wi-Spy Adapter products are some of the sexiest products that have come around in the industry in a long time. Displaying the live RF signals around me prior to making a presentation at a conference is like wearing a hot pair of steel stilettos. Attention-getting and very sexy (in a sick and twisted geeky way).

We've now partnered with the Metageek folks on the upcoming WLAN Analysis 101 course on September 10th - if you purchase the 2.4x or DBx Wi-Spy adapters, you'll get into the live class for free. If you already own their products, you should receive a 50% off coupon via their newsletter. As soon as we record the course, you'll also receive one-week unlimited access to the recorded course.

It's a good time to get the adapter... c'mon... you know you want one! You can order the products at

Enjoy life one bit at a time!

Tuesday, August 11, 2009

Ethereal is Dead!

Gerald Combs created Ethereal over 11 years ago when his boss wouldn't buy him a brand spanking new Sniffer box - something about budgets and all... so Gerald told his Sniffer rep that he was going to write his own packet sniffing tool. While that Sniffer rep was still rolling around laughing, Gerald started working on Ethereal.

The name? Yeah - the name Ethereal was always an issue - how do you pronounce it? Ethereal (
play wav) or Ethereal (play wav)? Many a late night has been spent huddled over pizzas in the cabling closet debating that issue. The answer - Ethereal (play wa


It surprises me to find many folks haven't moved up to Wireshark - it is, after all, the successor to Ethereal. The same developers, the same creator, the same base code set, the same development directory structure. I can only assume those folks also have 8-track tape players and beam with pride when talking about their 'vinyl collection.

For fun, I went to visit the old eth website - I thought the old Ethereal website was taken down ages ago, but imagine that NIS is still reaping some benefit from all the misguided hits. Looking at the stats in Alexa was pretty interesting - you can see the dramatic move to Wireshark at the end of the first quarter of 2008 - but what the heck is happening with in 2009?

Why are people still even hitting that site? Is everyone writing a blog entry about 'dead' software projects? Did some of my old articles and courses get reissued? Who are these Neanderthals walking among us?

It's time to upgrade to Wireshark folks. Wireshark v1.2.1 was released just a few weeks ago and fixed numerous bugs in the v1.2 release. There are still a few uglies in there, but would you rather be in a car that has a window that slowly rolls up or take a bicycle on that long drive along the network analysis road?

So perhaps today is the day to throw away those old bell bottom jeans and that mood ring (and perhaps dump those Shaper Image gift cards and Clear cards
as well).

Come on - get with the times! Oh... one more thing - and you pronounce Wireshark like this (
play mp3).

Enjoy life one bit at a time!

Wednesday, August 5, 2009

Out of Sight, Out of Mind?

Embedded OS Security Issues
This month seems to be "medical industry month" around here. My email has been loaded up with various hospitals and medical facilities. One of the topics that is hot right now is 'embedded OS' security issues. For example, the three devices shown in the image above all contain Microsoft embedded operating systems - Windows Embedded CE. (See

How many hosts on your network support an embedded OS? Is the vendor keeping those hosts up-to-date with patches and security fixes? An interesting question... this is a great reason to run OS fingerprinting against the range of IP addresses supported on your network (with permission of course) to find out where the addressable devices are. Listen to the network traffic and check out the endpoint listing that Wireshark provides. Any unusual devices around?

Some of our office printers have embedded OSes in them and can tell you they've never been updated by the vendor. What outdated OS is hanging around on those boxes? We're tapping into the nets now and doing some OS fingerprinting to see what we're up against - I suggest you do the same!

Have fun one bit at a time...
